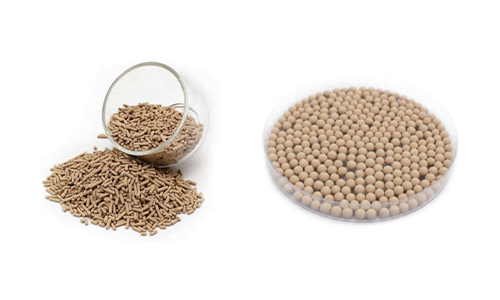

3A Activated Molecular Sieve-Spherical & Bar shape
3A Activated Molecular Sieve-Spherical & Bar shape
Introduction & Specs
| Introduction | 3A molecular sieve is an alkali metal aluminosilicate with a pore size of 3Å and a potassium-type A-type crystal structure. It is primarily used for water adsorption and does not adsorb any molecules larger than 3Å. It is the preferred desiccant for deep drying, refining, and polymerization in the petroleum and chemical industries.
|
| Benefits | l Fast adsorption rat
l More regeneration times l Higher crushing strength l Stronger anti-contamination ability l Greater utilization efficiency l Longer service life, etc.
|
| Applications | l Mainly used for drying unsaturated hydrocarbons such as ethylene, propylene, butadiene, and other petroleum cracking gases.
l Drying polar liquids such as methanol and ethanol. l Drying air. l Drying natural gas and methane.
|
| Molecular formula | 0.4K2O·0.6Na2O·Al2O3·2SiO2··4.5H2O (SiO2:Al2O3≈2)
|
Sales Specification
| ITEMS | 3A | |||
| Grade | Spherical shape | Bar-shape | ||
| Nominal pore diameter | 3 angstroms | |||
| Appearance | Beige spherical particles | Beige bar-shaped particles | ||
| Particle size | 1.6-2.5mm | 3.0-5.0mm | 1.5-1.7mm | 3.0-3.3mm |
| Bulk density | 0.70g/ml min | 0.68g/ml min | ||
| Compressive strength, N/grain | 35.0min | 100.0min | 35.0min | 50.0min |
| Particle size qualification rate | 98.0 %min | |||
| Static water adsorption (35±℃, RH75%, 24h) | 21% min | |||
| Static ethylene adsorption | 3.0% max | |||
| Wear rate | 0.2%max | |||
| Moisture content of packaged products (550±10℃, 1h) | 1.5%max | |||
| Packing | Available in 25kgs valve bag, 125 or 150kgs iron drum. Other packages available on request. |
| Storage | It is easy to absorb moisture and should not be directly exposed to the air. It should be stored in a cool and dry place. Otherwise, it should be regenerated at high temperature and purged at 200-350℃. |
| Shelf Life | 12 months from production date. |
